Breating Dynamic Secondary Scales

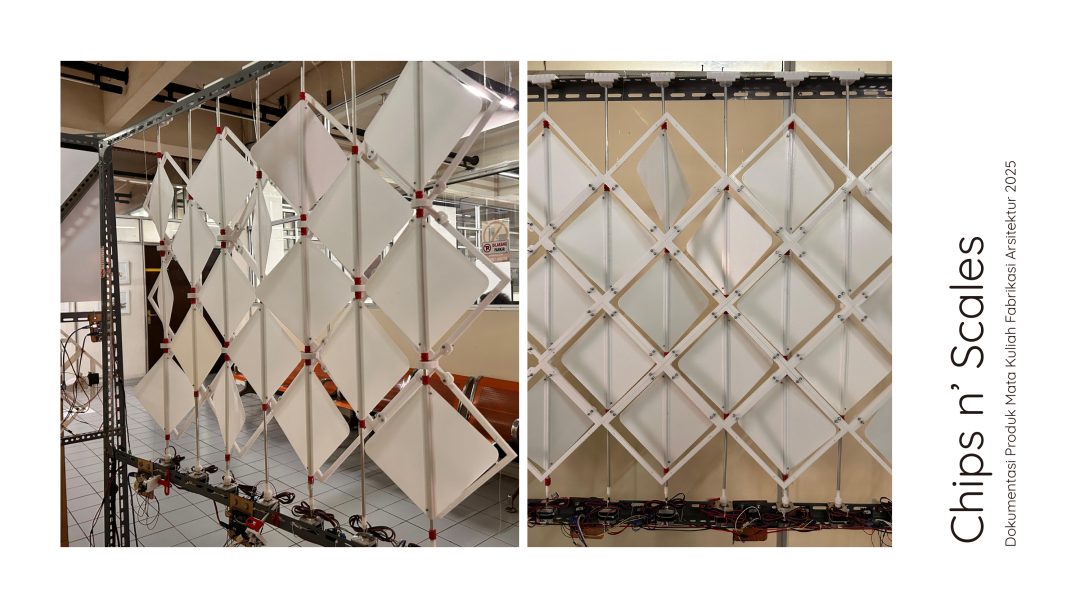

Breathing Dynamic Secondary Scales is a kinetic secondary façade system composed of small-scale modules that move rhythmically, resembling a breathing pattern. The system operates through an opening-closing mechanism to regulate shading. reduce heat gain and glare, and create a dynamic, adaptive building envelope.
Concept
1. Fish locomotion, continuous motion. characterized by fluid.
2. Leaf behavior, defined by its responsive deformation to airflow.
Biomimicry + Kinetic Facade
Exploring natural motion found in everyday life, with a focus on the dynamic interaction of water and wind.
Kinetic Mechanism

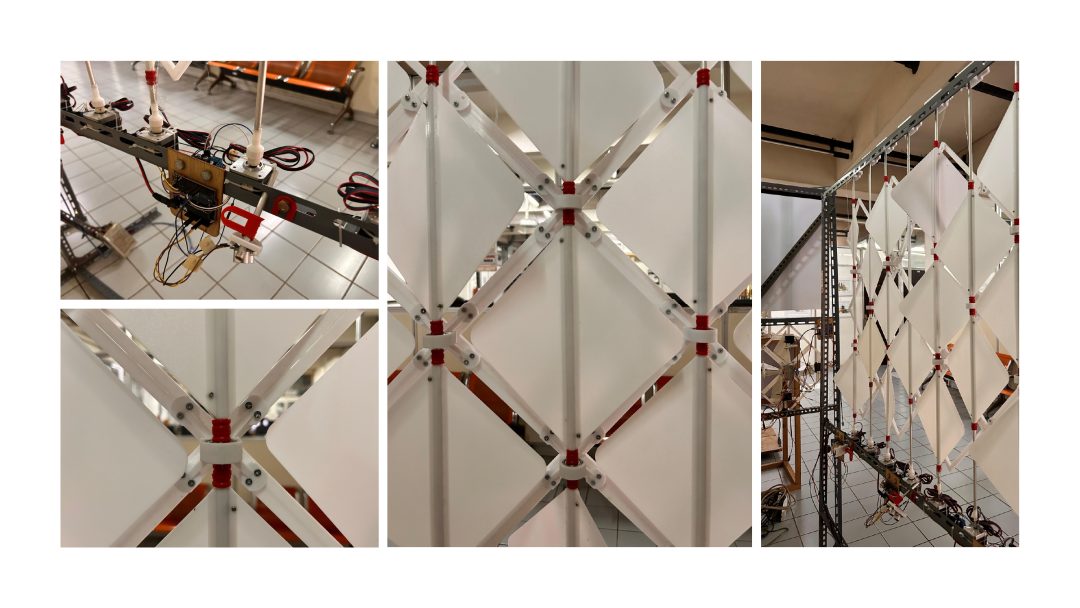

The kinetic mechanism in Breathing Dynamic Secondary Scales operates through a rotational motion system at each scale module. This motion is generated by a motor that rotates an axis, which is then transmitted through connecting rods and pivot joints attached to the main frame.
Each module rotates around a fixed axis with a controlled rotation angle, resulting in changes in surface orientation and forming rhythmic, continuous movement patterns that create a “breathing” effect on the façade.

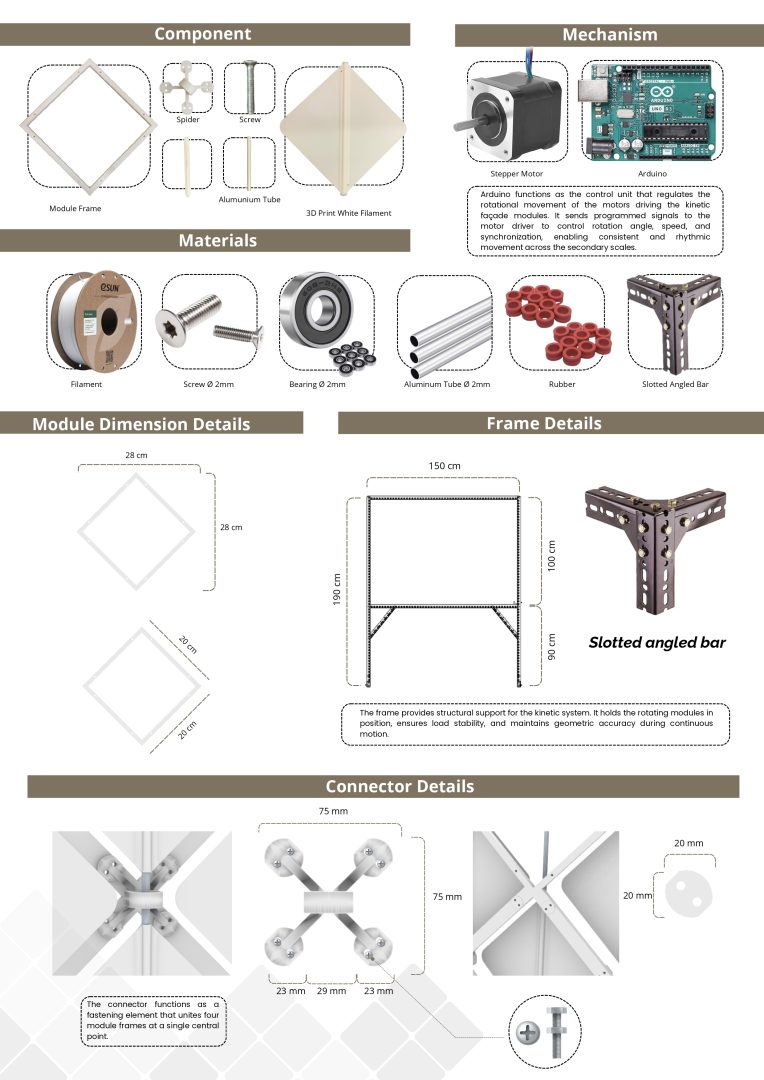

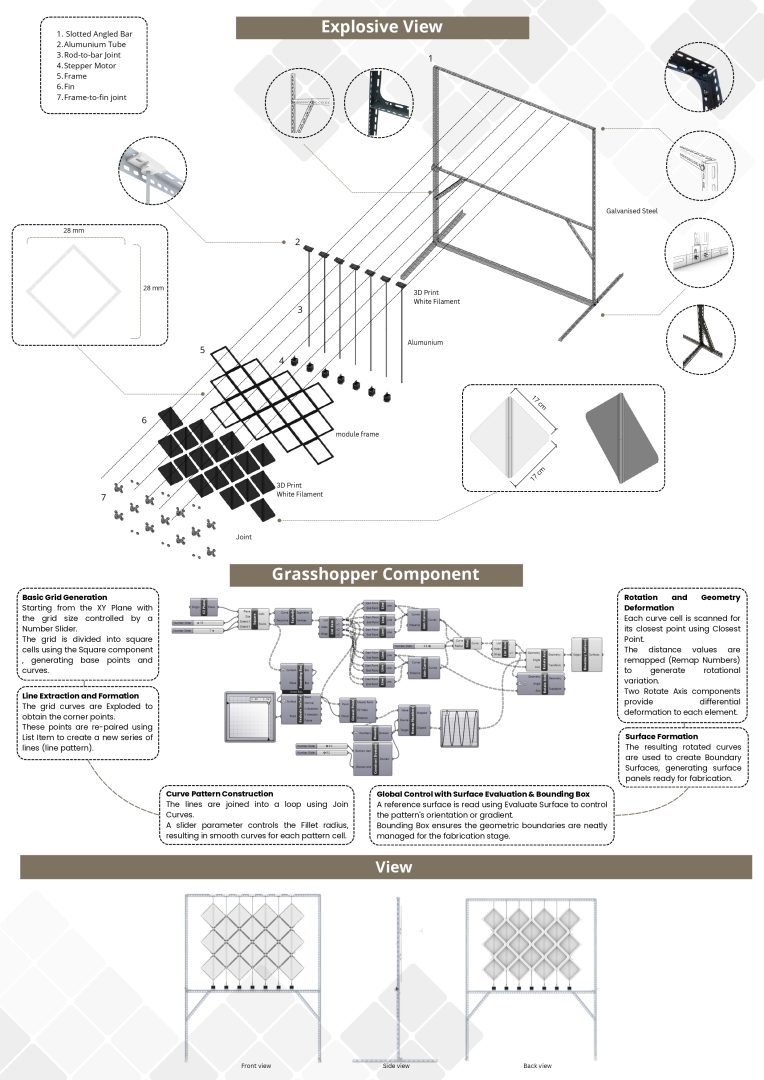

Component
- Module Frame
- Spider
- Screw
- Alumunium Tube
- 3D Print White Filament
Mechanism
- Stepper Motor
- Arduino
Materials
- Filament
- Screw 2mm
- Bearing 2mm
- Alumunium Tube 2mm
- Rubber
- Slotted Angled Bar
